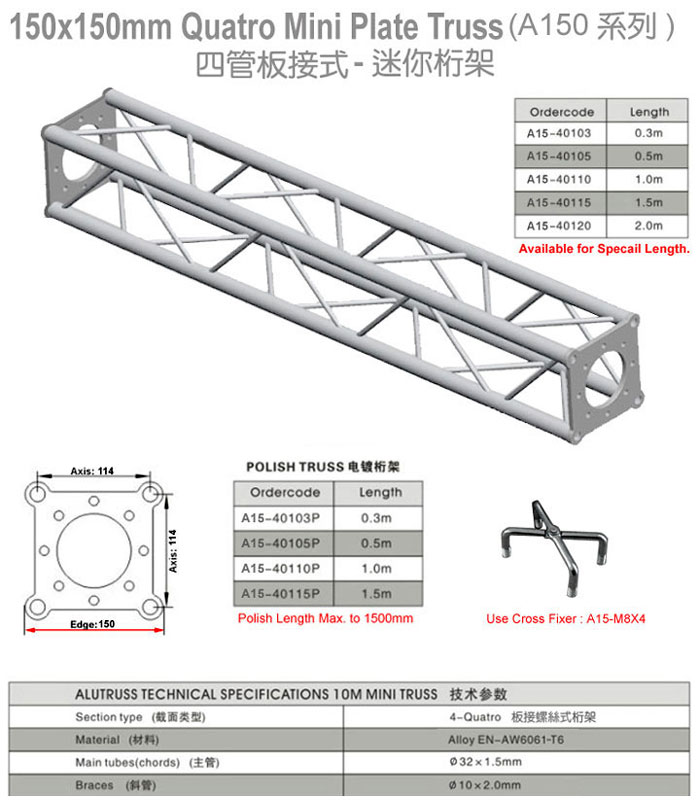

A150 Series : Axis: 114x114mm, Tube Edge 150x150mm,Tube:Ø32mm.  Mini Plate Quatro Truss. (板接式迷你桁架)

 Click below picture for details, 點擊下面型錄瀏覽 各類直型及彎頭詳細規格

Mini-150 Truss Load Recommendations

Attention :
The Mini-150 Truss are only for decoration and modeling frames use, We wouldn't  supply the Loading-Table or any Test- Report. You can't use it for large loading.You could hang or attach any ornaments, But we suggest, Not over 40kg per meter when use by straight hang.

請注意 :
Mini-150桁架僅用於裝飾及造型框架,我們不提供載重表 或 任何載重測試報告。
您不能將其用於較大的負載。 但您可以吊掛一些裝飾品,但每米不能超過40kg。


Click below picture for 150x150 Circle Round Truss page./ 点击下列图档,跳至圆形桁架页面.
