Duo Trusses :





Duo 220 Truss Duo 290 Truss Duo 390 Truss Duo 1010 Truss











 Edge 290mm , Duo Truss.  (標準歐規二管排片290桁架)

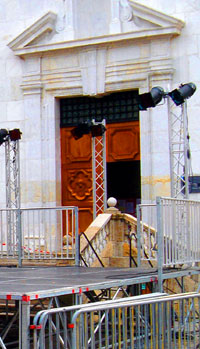

The Small Duo Truss is only using in decorative or simple small scaffolding. There are no Loading Test Report or Certification.
管小桁架 只使用在装饰或简易棚。不提供载重测验认证报告


Loading Specification for Duo 290 Truss :

    1m 2m 3m 4m 5m 6m 7m

990.5 400.6 172.2 89.5 51.5 25.5 ..

Deflection.(mm)

0 1 1 2 3 3 ..

993.8 562.5 282.5 145.8 83.5 43.2 ..

Deflection.(mm)

0 1 1 1 2 2 ..


 Aluminum Truss >> Multi Purpose Truss >>  DUO-290   (= M290B Duo-BTB)

Duo Straight 500mm
B29-20105
Duo Straight 1000mm
B29-20110

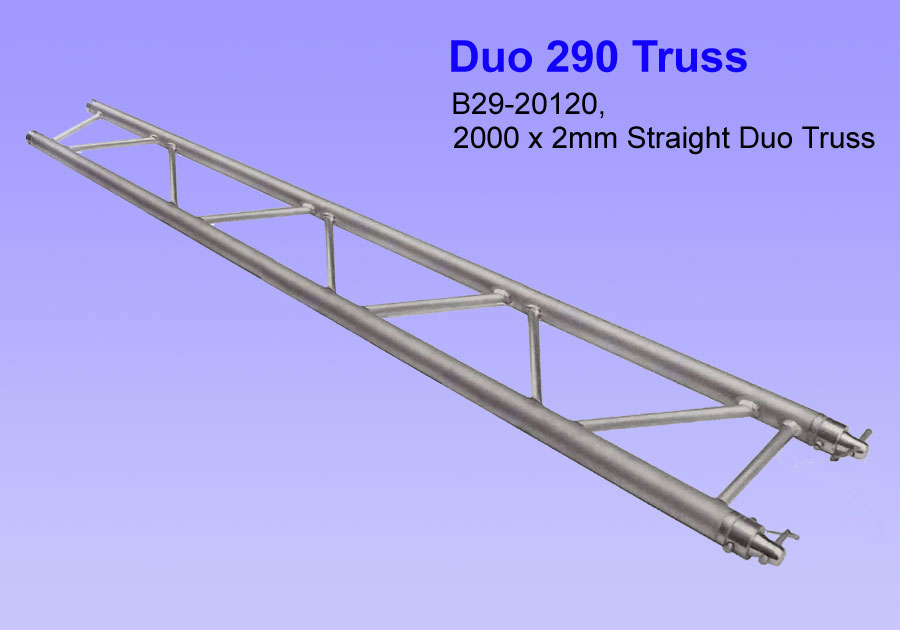

Duo Straight 2000mm
B29-20120


Duo Straight 3000mm
B29-20130

Duo 2 Way 45º V-Angle
B29-20210

Duo 2 Way 60º V-Angle
B29-20310


Duo 2 Way V120º V-Angle
B29-20505
Duo 2 Way V135º V-Angle
B29-20605
Duo 2 Way V45º H-Angle
B29-20705

Duo 2 Way V60º H-Angle
B29-20805
Duo 2 Way L90º H-Angle
B29-20905
Duo 2 Way V120º H-Angle
B29-21005

Duo 3 Way T90º V-Angle
B29-21105
Duo 3 Way T90º  H-Corner
B29-21405
Duo 3 Way T90º V-Corner
B29-21505

Duo 3 Way T90º H-Angle
B29-21705
Duo 4 Way Cross V-Angle
B29-21205
Duo 3 Way T90º + 1 V-Angle.
D
uo Angle.  B29-21305


Duo 3 Way T90º + 1 H-Angle.
B29-21605
Duo 2 Way L90º V-Angle.
B29-20405


Duo-290 Messestand Trussing :
Die 2 Punkt
Traversensystem für normale Belastungen. EN AW6082-T6 Legierung.
