Optional parts for CH-1000 :


4ch. synchronous Controller



Safety Sling for Chain Hoist

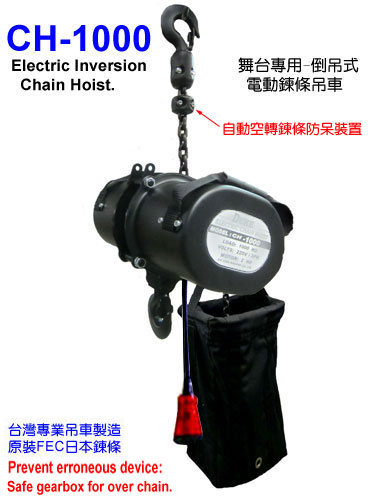

  Chain Hoist >> CH-1000 : Load 1000kgs Electric INVERSION Chain-Hoist

Power Supply :  3ph , 220V , 380V, 440V
    Power Consumption :
    Up: 3.3Amp, Down:2.3Amp .

Acccordance : DIN  Accordance with DIN 5684

 Chain Ring Spec. :  Ø 7.1mm
 Available :  3 to 20 Meter.
 Chain Import from Japan FEC.

Hoist Lifting Speed (FPM)  Speed : 50Hz 6M/min,
              60Hz 7M/min.

 Chain Material :
 Grade 80 super alloy load
 chain is precisely calibrated
 and heat-treated  for long life.

Approx Shipping Wgt.   N / W : 45 kgs
  G / W : 56 kgs

 Loading : 1000 kgs
 Safety factor is more then 6-1

Shipping Package :  Each in carton, 5.9cu'ft

 Drop Forged from Alloy Steel.
 Equipped safety with  latch
 and 360
º swivel hook.
